Object catalog
48 min readAppendices
The complete list of the Studio object library: 2D and 3D objects group by group, the screen type in which each object is found, and the number of properties in the Inspector.

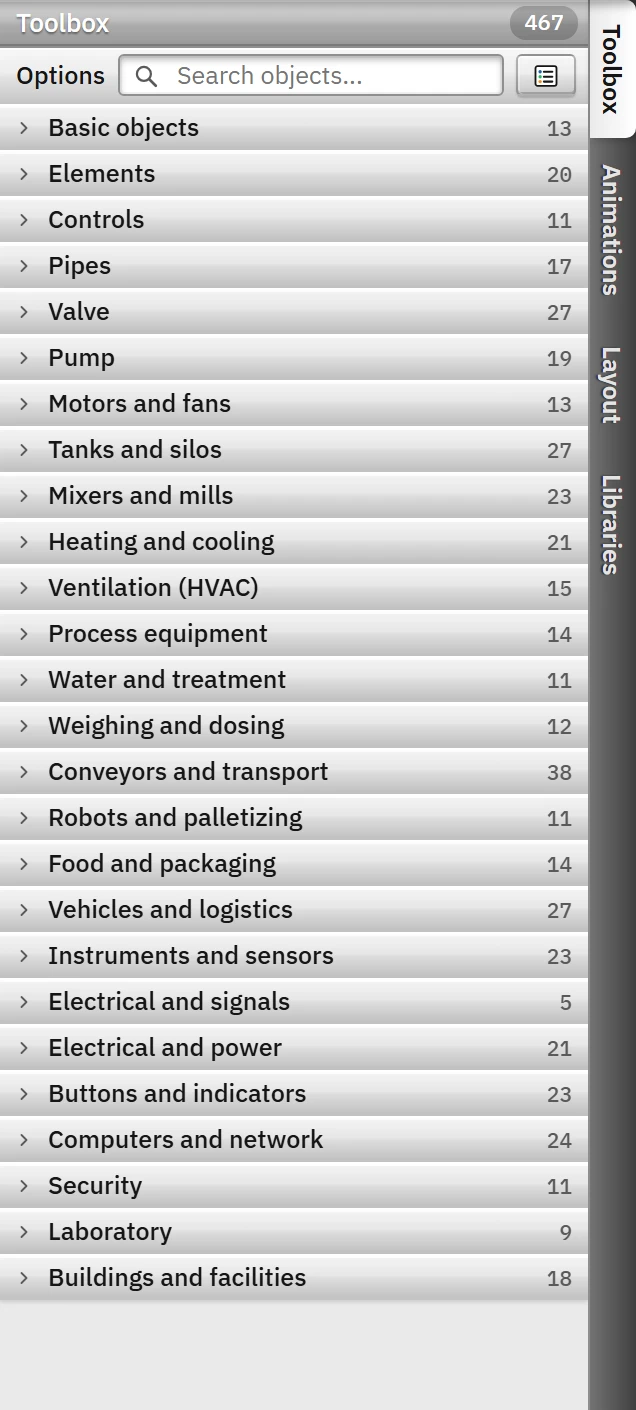

This topic lists all the objects that can be placed on screens. The list is generated from the object library of Studio, so it is exactly the same as the library of the version in which this manual was written. How to use the Toolbox (opening groups, searching, placing an object) is described in Toolbox and object library; to edit the properties of an object, see the Inspector.
123- Total — number of objects visible on this screen.
- Panel Components — enclosures, rails, PLCs, protection, drives, door devices.
- Plastics and Rubber — injection molding, calender, press, blow molding …
Reading the list
- The 2D column shows whether the object is in the Toolbox of 2D screens; the 3D column shows whether it is in the 3D Library of 3D screens. The two libraries are separate: 3D objects do not appear in the 2D Toolbox, and 2D objects do not appear in the 3D library.
- The Property column is the number of properties specific to the object type (for example, for Rectangle: fill color, line color, line width, line style, corner radius and opacity: 6). Name, position and size, animations and events are not included in this number because every object has them. The Property groups column gives the headings under which these properties are grouped in the Inspector.
- If an object with the same name exists in both the 2D and the 3D library, the row appears once and carries a mark in both columns; but they are two separate objects. The property count is that of the 2D object; the count of the 3D object may be different.
- The name used in the rows is the name in the Toolbox and in the Add menu. Each object placed on a screen additionally receives its own unique name (for example
DikTank_1for Vertical tank); this name is changed in the Inspector.
Groups
| Group | Content |
|---|---|
| Basic objects | Drawing objects such as rectangle, ellipse, line, and polygon; image and text. Identical in the 2D and 3D libraries. |
| Elements | Objects used by the operator: I/O field, button, switch, slider, indicator, list box. Elements |
| Controls | Trend, alarm, event, recipe, report and user views; screen window, PLC connection status, IP camera, menu and toolbar. Controls |
| Recipe, Report | They appear only in the Toolbox of the relevant design screen and have no 3D equivalent. They are not listed on a normal screen. |
| Equipment groups (Pipes, Valve, Pump, Tanks and silos …) | Process equipment: pipes and fittings, valves, pumps, motors and fans, tanks and silos, mixers, heating and cooling, weighing and dosing, conveyors, robots and packaging, food machines, vehicles and logistics, instruments and sensors, electrical, computers and network, security, laboratory, building and facility, ventilation, wire and cable, surface treatment and painting, metalworking, plastics and rubber. Process objects |
| Panel Components | Interior and door of PLC and MCC panels: enclosures, mounting plate, DIN rail, PLC modules, protection and relays, drives, terminals, door devices. Devices snap to the rail, the plate, the door or the drawer. Panel components |
Objects found in only one library
- 2D only: the Recipe and Report groups; also List box, Option buttons, Analog clock, HTML browser, PDF viewer, PC information, Round button, Diamond button, Increase / decrease, Selector switch, Menu bar, Toolbar, Event view and the screen template objects (Status Info, Navigation Bar, Command Buttons, Alarm Bar); also some equipment objects (those with an empty 3D column in the table).
- 3D only: Wall, Column, Glass partition, Ground area, Platform, Stairs, Railing, Sectional door, Building / hall, Electrical panel, Lighting Pole, Control desk, Operator and Barrier. These objects are for building the 3D scene as a plant or a building.
There is a separate command for converting a 2D screen to a 3D screen: Convert screen to 3D.
Full list
The library contains 809 2D objects and 755 3D objects. The 2D and 3D columns in the tables show which screen type the object is found in, and the Property column shows the number of properties in the Inspector.
Basic objects13 objectsElements20 objectsControls15 objectsRecipe10 objectsReport11 objectsPipes17 objectsValve27 objectsMotors and fans13 objectsPump19 objectsTanks and silos27 objectsConveyors and transport41 objectsHeating and cooling23 objectsProcess equipment17 objectsInstruments and sensors29 objectsElectrical and signals6 objectsMixers and mills23 objectsWater and treatment11 objectsRobots and palletizing11 objectsVehicles and logistics32 objectsBuildings and facilities28 objectsElectrical and power30 objectsButtons and indicators24 objectsComputers and network24 objectsSecurity13 objectsLaboratory11 objectsWeighing and dosing12 objectsFood and packaging40 objectsVentilation (HVAC)16 objectsWire and cable21 objectsSurface treatment and painting15 objectsMetalworking33 objectsPanel components94 objectsSiemens panel equipment51 objectsABB panel equipment35 objectsPlastics and rubber10 objects
Basic objects
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Rectangle | ✓ | ✓ | 6 | View |
| Ellipse | ✓ | ✓ | 5 | View |
| Line | ✓ | ✓ | 5 | View |
| Triangle | ✓ | ✓ | 4 | View |
| Polygon | ✓ | ✓ | 5 | View |
| Star | ✓ | ✓ | 6 | View |
| Arrow | ✓ | ✓ | 6 | View |
| Polyline | ✓ | ✓ | 4 | View |
| Free polygon | ✓ | ✓ | 4 | View |
| Arc | ✓ | ✓ | 4 | View |
| Pie slice | ✓ | ✓ | 6 | View |
| Graphic | ✓ | ✓ | 3 | Graphic |
| Text | ✓ | ✓ | 13 | Text, Appearance, Text |
Elements
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| I/O field | ✓ | ✓ | 15 | State, Format, Appearance, Font |
| Symbolic I/O field | ✓ | ✓ | 13 | State, Format, Appearance, Font |
| Status indicator | ✓ | ✓ | 7 | State, Appearance |
| Check box | ✓ | ✓ | 10 | State, Text, Appearance, Font |
| Button | ✓ | ✓ | 11 | Text, Appearance, Text |
| Switch | ✓ | ✓ | 8 | State, Appearance, Font |
| Bar | ✓ | ✓ | 12 | State, Scale, Appearance, Font |
| Gauge | ✓ | ✓ | 13 | State, Scale, Appearance, Font |
| Slider | ✓ | ✓ | 4 | State, Scale, Appearance |
| Clock / Date | ✓ | ✓ | 10 | Text, Appearance, Text |
| List box | ✓ | — | 16 | State, Format, Appearance, Font |
| Option buttons | ✓ | — | 16 | State, Format, Appearance, Font |
| Analog clock | ✓ | — | 18 | State, Appearance, Font |
| HTML browser | ✓ | — | 11 | State, Appearance, Font |
| Round button | ✓ | — | 9 | Text, Appearance, Text |
| Diamond button | ✓ | — | 10 | Text, Appearance, Text |
| PDF viewer | ✓ | — | 15 | State, Appearance, Font |
| PC information | ✓ | — | 25 | Text, Appearance, Show, Limits, Format, Text |
| Increase / decrease | ✓ | — | 16 | State, Scale, Format, Appearance, Font |
| Selector switch | ✓ | — | 15 | State, Text, Appearance, Font |
Controls
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Screen window | ✓ | ✓ | 6 | State, Appearance |
| PLC connection status | ✓ | ✓ | 10 | Appearance, Format, Text |
| User view | ✓ | ✓ | 8 | State, Appearance, Format, Font |
| IP camera | ✓ | ✓ | 25 | Camera, Appearance, Text |
| Trend view | ✓ | ✓ | 65 | Data, Time, Axes, Appearance, Format, Legend, Toolbar, Interaction, Export, Text |
| Alarm view | ✓ | ✓ | 56 | State, Columns, Filter, Toolbar, Appearance, Format, Behavior, Sound, Export, Font |
| Recipe view | ✓ | ✓ | 37 | State, Appearance, Columns, Tabs, Actions, Format, Font |
| Report view | ✓ | ✓ | 40 | Data, Title, Filter, Toolbar, Table, Sections, Format, Text |
| Menu bar | ✓ | — | 9 | State, Appearance, Format, Font |
| Toolbar | ✓ | — | 10 | State, Appearance, Format, Font |
| Status Info | ✓ | — | 16 | State, Appearance, Text, Font |
| Navigation Bar | ✓ | — | 16 | State, Appearance, Format, Font |
| Command Buttons | ✓ | — | 21 | Appearance, Format, Buttons, Font |
| Alarm Bar | ✓ | — | 11 | State, Format, Font |
| Event view | ✓ | — | 26 | State, Data, Appearance, Format, Font |
Recipe
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Recipe field | ✓ | — | 17 | State, Appearance, Format, Font |
| Record selector | ✓ | — | 11 | Label, Appearance, Format, Text |
| Recipe button | ✓ | — | 9 | State, Appearance, Format, Font |
| Recipe info | ✓ | — | 9 | State, Appearance, Format, Font |
| Element table | ✓ | — | 15 | Columns, Appearance, Format, Text |
| Comparison | ✓ | — | 9 | State, Appearance, Format, Font |
| Transfer panel | ✓ | — | 7 | Appearance, Format, Text |
| Transfer history | ✓ | — | 6 | Format, Text |
| Total indicator | ✓ | — | 6 | Format, Text |
| Group tabs | ✓ | — | 6 | Format, Text |
Report
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Record table | ✓ | — | 17 | Columns, Sorting and summary, Appearance, Format, Text |
| Report field | ✓ | — | 14 | State, Appearance, Format, Font |
| Date filter | ✓ | — | 11 | State, Appearance, Format, Font |
| Report button | ✓ | — | 9 | State, Appearance, Format, Font |
| Report info | ✓ | — | 10 | State, Appearance, Format, Font |
| Record chart | ✓ | — | 17 | Data, Appearance, Axis, Format, Text |
| Report Statistics | ✓ | — | 16 | Data, Cards, Appearance, Format, Text |
| Signature Block | ✓ | — | 11 | Content, Appearance, Format, Text |
| Record Comparison | ✓ | — | 10 | Data, Appearance, Format, Text |
| Period Summary | ✓ | — | 12 | Data, Appearance, Format, Text |
| Report Header | ✓ | — | 14 | Content, Format, Text |
Pipes
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Pipes | ✓ | ✓ | 6 | State, Appearance |
| Elbow | ✓ | ✓ | 6 | State, Appearance |
| Tee | ✓ | ✓ | 6 | State, Appearance |
| Cross | ✓ | ✓ | 6 | State, Appearance |
| Flanged pipe | ✓ | ✓ | 5 | State, Appearance |
| Flange pair | ✓ | ✓ | 5 | State, Appearance |
| Reducer | ✓ | ✓ | 6 | State, Appearance |
| Blind plug | ✓ | ✓ | 2 | View |
| Y-strainer | ✓ | ✓ | 6 | State, Appearance |
| Sight glass | ✓ | ✓ | 5 | State, Appearance |
| Expansion joint | ✓ | ✓ | 5 | State, Appearance |
| Flexible hose | ✓ | ✓ | 5 | State, Appearance |
| Spray nozzle | ✓ | ✓ | 5 | State, Appearance |
| Static mixer | ✓ | ✓ | 6 | State, Appearance |
| Pipe support | ✓ | ✓ | 5 | State, Appearance |
| Steam trap | ✓ | ✓ | 4 | State, Appearance |
| Pipeline with flow lights | ✓ | ✓ | 6 | State, Appearance, State colors |
Valve
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Hand valve | ✓ | — | 6 | State, State colors |
| Pneumatic valve | ✓ | ✓ | 6 | State, State colors |
| Motorized valve | ✓ | ✓ | 11 | State, State colors, Font |
| Butterfly valve | ✓ | ✓ | 6 | State, State colors |
| Check valve | ✓ | ✓ | 6 | State, State colors |
| Three-way valve | ✓ | ✓ | 6 | State, State colors |
| Proportional valve | ✓ | — | 12 | State, State colors, Font |
| Gate valve | ✓ | ✓ | 7 | State, State colors |
| Globe valve | ✓ | ✓ | 7 | State, State colors |
| Ball valve | ✓ | ✓ | 7 | State, State colors |
| Butterfly valve (gear operated) | ✓ | ✓ | 7 | State, State colors |
| Swing check valve | ✓ | ✓ | 7 | State, Appearance, State colors |
| Three-way ball valve | ✓ | ✓ | 7 | State, State colors |
| Diaphragm valve | ✓ | ✓ | 7 | State, State colors |
| Pinch valve | ✓ | ✓ | 7 | State, State colors |
| Needle valve | ✓ | ✓ | 7 | State, State colors |
| Safety valve | ✓ | ✓ | 6 | State, State colors |
| Solenoid valve | ✓ | ✓ | 8 | State, Appearance, State colors |
| Control valve with positioner | ✓ | ✓ | 12 | State, State colors, Font |
| Electric actuated valve | ✓ | ✓ | 13 | State, State colors, Font |
| Knife gate valve | ✓ | ✓ | 7 | State, State colors |
| Rotary airlock (rotary valve) | ✓ | ✓ | 9 | State, Appearance, State colors |
| Slide gate | ✓ | ✓ | 7 | State, State colors |
| Damper (louver) | ✓ | ✓ | 12 | State, State colors, Font |
| Line valve (straight) | ✓ | — | 6 | State, State colors |
| Pneumatic on / off valve | ✓ | — | 6 | State, State colors |
| Diaphragm control valve | ✓ | — | 13 | State, Appearance, State colors, Font |
Motors and fans
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Motor | ✓ | ✓ | 6 | State, State colors |
| Centrifugal fan | ✓ | ✓ | 8 | State, State colors |
| Axial fan | ✓ | ✓ | 8 | State, State colors |
| Roots blower | ✓ | ✓ | 8 | State, State colors |
| Side channel blower | ✓ | ✓ | 8 | State, State colors |
| Ducted centrifugal blower | ✓ | ✓ | 8 | State, State colors |
| Axial duct fan | ✓ | ✓ | 7 | State, State colors |
| Roof fan | ✓ | ✓ | 7 | State, State colors |
| Gear motor | ✓ | ✓ | 8 | State, State colors |
| Servo motor | ✓ | ✓ | 8 | State, State colors |
| Vibration motor | ✓ | ✓ | 7 | State, State colors |
| Turbine (steam / gas) | ✓ | ✓ | 7 | State, State colors |
| Diesel generator set | ✓ | ✓ | 13 | State, Format, State colors, Font |
Pump
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Pump | ✓ | ✓ | 8 | State, State colors |
| Motor pump | ✓ | ✓ | 8 | State, State colors |
| Gear pump | ✓ | ✓ | 7 | State, State colors |
| Compressor | ✓ | ✓ | 6 | State, State colors |
| Base-mounted centrifugal pump | ✓ | — | 7 | State, State colors |
| Inline pump | ✓ | ✓ | 7 | State, State colors |
| Vertical multistage pump | ✓ | ✓ | 7 | State, State colors |
| Submersible pump | ✓ | ✓ | 8 | State, State colors |
| Air-operated diaphragm pump | ✓ | ✓ | 7 | State, State colors |
| Peristaltic (hose) pump | ✓ | ✓ | 8 | State, State colors |
| Lobe pump | ✓ | ✓ | 8 | State, State colors |
| Progressive cavity pump (screw pump) | ✓ | ✓ | 8 | State, State colors |
| Piston pump | ✓ | ✓ | 7 | State, State colors |
| Liquid ring vacuum pump | ✓ | ✓ | 9 | State, Appearance, State colors |
| Dosing pump | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Drum pump | ✓ | ✓ | 9 | State, Appearance, State colors |
| Fire pump set | ✓ | ✓ | 13 | State, Appearance, State colors, Font |
| Process pump | ✓ | — | 8 | State, State colors |
| Vacuum pump motor | ✓ | — | 6 | State, State colors |
Tanks and silos
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Vertical tank | ✓ | ✓ | 12 | State, Appearance, Font |
| Horizontal tank | ✓ | ✓ | 11 | State, Appearance, Font |
| Silo | ✓ | ✓ | 11 | State, Appearance, Font |
| Open tank | ✓ | ✓ | 11 | State, Appearance, Font |
| Hopper | ✓ | ✓ | 11 | State, Appearance, Font |
| Tank with agitator | ✓ | ✓ | 18 | State, Appearance, State colors, Font |
| Mixer | ✓ | ✓ | 7 | State, State colors |
| Cutaway tank (with mixer) | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Jacketed tank | ✓ | ✓ | 12 | State, Appearance, Font |
| Cone-bottom tank | ✓ | ✓ | 11 | State, Appearance, Font |
| Horizontal tank (on saddles) | ✓ | ✓ | 11 | State, Appearance, Font |
| Pressure vessel | ✓ | ✓ | 11 | State, Appearance, Font |
| Spherical gas tank | ✓ | ✓ | 11 | State, Appearance, Font |
| IBC tank | ✓ | ✓ | 11 | State, Appearance, Font |
| Drum | ✓ | ✓ | 11 | State, Appearance, Font |
| Bunker with level | ✓ | ✓ | 11 | State, Appearance, Font |
| Day tank | ✓ | ✓ | 11 | State, Appearance, Font |
| Big bag discharge station | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Gas cylinder | ✓ | ✓ | 10 | State, Appearance, Font |
| Cryogenic tank | ✓ | ✓ | 12 | State, Appearance, Font |
| Open basin | ✓ | ✓ | 11 | State, Appearance, Font |
| Silo on legs (with info plate) | ✓ | ✓ | 21 | State, Appearance, Format, Font |
| Dosing silo (screw) | ✓ | ✓ | 25 | State, Appearance, Format, State colors, Font |
| Metal hopper (with flap) | ✓ | ✓ | 10 | State, Appearance, State colors |
| Oil tank (with agitator) | ✓ | ✓ | 19 | State, Label, Appearance, State colors, Font |
| Conical bottom process tank | ✓ | — | 10 | State, Appearance, Font |
| Aging tank | ✓ | ✓ | 20 | State, Label, Appearance, State colors, Font |
Conveyors and transport
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Belt conveyor | ✓ | ✓ | 8 | State, State colors |
| Roller conveyor | ✓ | ✓ | 8 | State, State colors |
| Screw conveyor | ✓ | ✓ | 8 | State, State colors |
| Bucket elevator | ✓ | ✓ | 7 | State, State colors |
| Inclined belt conveyor | ✓ | ✓ | 10 | State, Appearance, State colors |
| Curved belt conveyor | ✓ | ✓ | 10 | State, Appearance, State colors |
| Chain conveyor | ✓ | ✓ | 8 | State, State colors |
| Slat conveyor | ✓ | ✓ | 8 | State, State colors |
| Modular belt conveyor | ✓ | ✓ | 11 | State, Appearance, State colors |
| Vibratory feeder | ✓ | ✓ | 8 | State, Appearance, State colors |
| Elevator head | ✓ | ✓ | 7 | State, State colors |
| Elevator boot | ✓ | ✓ | 7 | State, State colors |
| Pneumatic conveying line | ✓ | ✓ | 8 | State, Appearance, State colors |
| Diverter flap | ✓ | ✓ | 8 | State, Appearance, State colors |
| Turntable | ✓ | ✓ | 11 | State, Appearance, State colors |
| Vertical lift | ✓ | ✓ | 10 | State, Appearance, State colors |
| Pallet conveyor | ✓ | ✓ | 11 | State, Appearance, State colors |
| Transfer car | ✓ | ✓ | 11 | State, Appearance, State colors |
| Overhead crane | ✓ | ✓ | 10 | State, State colors |
| Electric hoist | ✓ | ✓ | 9 | State, State colors |
| Screw feeder with hopper | ✓ | ✓ | 8 | State, State colors |
| Telescopic conveyor | ✓ | ✓ | 11 | State, Appearance, State colors |
| Product flow (pouring) | ✓ | ✓ | 4 | State, Appearance |
| Flow arrow | ✓ | ✓ | 4 | State, Appearance |
| Conveying pipe (with flow) | ✓ | ✓ | 11 | State, Appearance, State colors |
| Diverter valve | ✓ | ✓ | 7 | State, Appearance, State colors |
| Screw conveyor (auger) | ✓ | — | 9 | State, Appearance, State colors |
| Rotary valve | ✓ | ✓ | 8 | State, State colors |
| Blower | ✓ | ✓ | 8 | State, Appearance, State colors |
| Jet filter | ✓ | — | 15 | State, Label, State colors, Font |
| Metal detector conveyor | ✓ | ✓ | 11 | State, Appearance, State colors |
| Bellows (extending) | ✓ | ✓ | 1 | State |
| Bottle / case conveyor (isometric) | ✓ | ✓ | 9 | State, State colors |
| Cleated belt conveyor | ✓ | ✓ | 11 | State, Appearance, State colors |
| Curved roller conveyor | ✓ | ✓ | 11 | State, Appearance, State colors |
| Work / packing table | ✓ | ✓ | 3 | View |
| Roller diverter (Y sorter) | ✓ | ✓ | 12 | State, Appearance, State colors |
| Vibratory discharge pan | ✓ | ✓ | 11 | State, Appearance, State colors |
| Spiral Conveyor | ✓ | ✓ | 9 | State, Appearance, State colors |
| Overhead (Monorail) Conveyor | ✓ | ✓ | 9 | State, Appearance, State colors |
| Cross-Belt Sorter | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
Heating and cooling
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Heat exchanger | ✓ | ✓ | 6 | State, State colors |
| Heater | ✓ | ✓ | 6 | State, State colors |
| Boiler | ✓ | — | 6 | State, State colors |
| Steam boiler | ✓ | ✓ | 9 | State, State colors |
| Burner | ✓ | ✓ | 7 | State, State colors |
| Industrial furnace | ✓ | ✓ | 12 | State, State colors, Font |
| Tunnel oven | ✓ | ✓ | 13 | State, State colors, Font |
| Rotary kiln | ✓ | ✓ | 8 | State, State colors |
| Fluid bed dryer | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Spray dryer | ✓ | ✓ | 13 | State, State colors, Font |
| Plate heat exchanger | ✓ | ✓ | 7 | State, State colors |
| Shell and tube heat exchanger (cutaway) | ✓ | — | 7 | State, State colors |
| Cooling tower | ✓ | ✓ | 8 | State, State colors |
| Chiller (water cooling unit) | ✓ | ✓ | 13 | State, State colors, Font |
| Air handling unit | ✓ | ✓ | 14 | State, State colors, Font |
| Evaporator (falling film) | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Condenser (air-cooled) | ✓ | ✓ | 13 | State, State colors, Font |
| Electric heater bank | ✓ | ✓ | 12 | State, State colors, Font |
| Radiator | ✓ | ✓ | 7 | State, State colors |
| Coil heat exchanger | ✓ | — | 3 | State, Appearance |
| Curing oven (section) | ✓ | ✓ | 22 | State, Scale, Appearance, Format, State colors, Font |
| Mold Temperature Controller | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Explosion-Proof Industrial Freezer | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
Process equipment
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Filter | ✓ | — | 7 | State, Appearance, Font |
| Cyclone | ✓ | ✓ | 6 | State, State colors |
| Vibrating screen | ✓ | ✓ | 6 | State, State colors |
| Scale | ✓ | ✓ | 8 | State, Format, Font |
| Reactor (jacketed, with mixer) | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Distillation column | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Gas scrubber | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Decanter centrifuge | ✓ | ✓ | 7 | State, State colors |
| Basket centrifuge | ✓ | ✓ | 9 | State, Appearance, State colors |
| Separator (disc stack) | ✓ | ✓ | 8 | State, State colors |
| Bag filter (jet pulse) | ✓ | — | 7 | State, State colors |
| Round vibrating screen | ✓ | ✓ | 7 | State, Appearance, State colors |
| Magnetic separator (overbelt) | ✓ | ✓ | 7 | State, State colors |
| Compactor (roller) | ✓ | ✓ | 9 | State, Appearance, State colors |
| Compressed Air Dryer | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| PSA Gas Generator | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Jet filter | — | ✓ | 17 | State, Appearance, Scale, State colors |
Instruments and sensors
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Instrument | ✓ | ✓ | 11 | Label, State, Appearance, Text |
| Thermometer | ✓ | ✓ | 10 | State, Scale, Appearance, Font |
| Pressure gauge | ✓ | ✓ | 10 | State, Scale, Font |
| Flowmeter | ✓ | ✓ | 9 | State, Scale, Appearance, Font |
| Sensor | ✓ | — | 3 | State, Appearance |
| Magnetic flowmeter | ✓ | — | 10 | State, Scale, Appearance, Font |
| Vortex flowmeter | ✓ | ✓ | 10 | State, Scale, Appearance, Font |
| Coriolis flowmeter | ✓ | ✓ | 10 | State, Scale, Appearance, Font |
| Turbine flowmeter | ✓ | ✓ | 10 | State, Scale, Appearance, Font |
| Ultrasonic flowmeter | ✓ | ✓ | 10 | State, Scale, Appearance, Font |
| Rotameter | ✓ | ✓ | 12 | State, Scale, Appearance, Font |
| Radar level transmitter | ✓ | ✓ | 12 | State, Scale, Appearance, Font |
| Level switch (tuning fork) | ✓ | ✓ | 5 | State, Appearance |
| Pressure transmitter | ✓ | ✓ | 12 | State, Scale, Appearance, Font |
| Temperature transmitter (thermowell) | ✓ | ✓ | 12 | State, Scale, Appearance, Font |
| pH / conductivity analyzer | ✓ | ✓ | 11 | State, Scale, Appearance, Font |
| Load cell | ✓ | ✓ | 13 | State, Scale, Appearance, Font |
| Inductive proximity sensor | ✓ | ✓ | 4 | State, Appearance |
| Photoelectric sensor | ✓ | ✓ | 6 | State, Appearance |
| Encoder | ✓ | ✓ | 5 | State, Appearance |
| Limit switch | ✓ | ✓ | 4 | State, Appearance |
| Inline transmitter | ✓ | — | 4 | State, Scale |
| Ring gauge | ✓ | ✓ | 20 | State, Scale, Appearance, Format, State colors, Font |
| Orifice Plate | ✓ | ✓ | 18 | State, Appearance, State colors, Font |
| Venturi Flow Meter | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Flow Nozzle | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| V-Cone Flow Meter | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Averaging Pitot Flow Meter | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Inline Viscometer | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
Electrical and signals
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Signal lamp | ✓ | ✓ | 3 | State, Appearance |
| Rotating beacon | ✓ | ✓ | 2 | State, Appearance |
| Signal tower | ✓ | ✓ | 4 | State |
| Siren | ✓ | ✓ | 2 | State, Appearance |
| Circuit breaker | ✓ | ✓ | 6 | State, State colors |
| Traffic Light | ✓ | ✓ | 6 | Appearance, State |
Mixers and mills
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Ribbon mixer | ✓ | ✓ | 7 | State, State colors |
| Paddle mixer (twin-shaft) | ✓ | ✓ | 7 | State, State colors |
| Conical screw mixer | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Planetary mixer | ✓ | ✓ | 9 | State, Appearance, State colors |
| Inline high-shear mixer | ✓ | ✓ | 7 | State, State colors |
| Drum mixer | ✓ | ✓ | 7 | State, State colors |
| V-type mixer | ✓ | ✓ | 7 | State, State colors |
| Kneader (sigma blade) | ✓ | ✓ | 7 | State, State colors |
| Internal mixer (Banbury type) | ✓ | ✓ | 14 | State, State colors, Font |
| Open mill (two-roll) | ✓ | ✓ | 10 | State, State colors |
| Extruder | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Ball mill | ✓ | ✓ | 7 | State, State colors |
| Hammer mill | ✓ | ✓ | 7 | State, State colors |
| Jaw crusher | ✓ | ✓ | 7 | State, State colors |
| Granulator | ✓ | ✓ | 8 | State, Appearance, State colors |
| Pellet press | ✓ | ✓ | 8 | State, Appearance, State colors |
| Nauta mixer (conical) | ✓ | ✓ | 12 | State, Appearance, State colors |
| Z-blade mixer (twin blade) | ✓ | — | 13 | State, Appearance, State colors |
| V mixer (rotating body) | ✓ | — | 14 | State, Appearance, State colors |
| Ploughshare mixer (horizontal) | ✓ | ✓ | 12 | State, Appearance, State colors |
| Nauta conical mixer | ✓ | — | 10 | State, Appearance, State colors |
| Banbury mixer (section) | ✓ | ✓ | 12 | State, State colors |
| Colloid Mill | ✓ | ✓ | 13 | State, State colors, Font |
Water and treatment
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Circular clarifier | ✓ | ✓ | 8 | State, Appearance, State colors |
| Aeration basin | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Sand filter | ✓ | ✓ | 8 | State, State colors |
| Reverse osmosis unit | ✓ | ✓ | 13 | State, State colors, Font |
| Filter press | ✓ | ✓ | 8 | State, State colors |
| UV disinfection unit | ✓ | ✓ | 12 | State, State colors, Font |
| Chemical dosing unit | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Mechanical bar screen | ✓ | ✓ | 9 | State, Appearance, State colors |
| DAF unit (dissolved air flotation) | ✓ | ✓ | 9 | State, Appearance, State colors |
| Sludge thickener | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Open filter bed | ✓ | ✓ | 8 | State, Appearance, State colors |
Robots and palletizing
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| 6-axis robot | ✓ | ✓ | 12 | State, Appearance, State colors |
| SCARA robot | ✓ | ✓ | 10 | State, State colors |
| Cartesian robot (gantry) | ✓ | ✓ | 12 | State, Appearance, State colors |
| Palletizing robot cell | ✓ | — | 10 | State, Appearance, State colors |
| Stretch wrapping machine | ✓ | ✓ | 11 | State, Appearance, State colors |
| Depalletizer | ✓ | ✓ | 9 | State, Appearance, State colors |
| AGV / AMR | ✓ | ✓ | 12 | State, Appearance, State colors |
| Case erector | ✓ | ✓ | 8 | State, Appearance, State colors |
| Case sealer | ✓ | ✓ | 8 | State, Appearance, State colors |
| Pallet (top view) | ✓ | — | 13 | State, Appearance, Font |
| Palletizing robot | ✓ | ✓ | 9 | State, Appearance, State colors |
Vehicles and logistics
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Truck (box trailer) | ✓ | ✓ | 10 | State, Appearance, State colors |
| Tanker | ✓ | ✓ | 3 | State, Appearance |
| Silo truck | ✓ | ✓ | 10 | State, Appearance, State colors |
| Truck (flatbed trailer) | ✓ | ✓ | 11 | State, Appearance, State colors |
| Dump truck | ✓ | ✓ | 12 | State, Appearance, State colors |
| Forklift | ✓ | ✓ | 12 | State, Appearance, State colors |
| Pallet truck | ✓ | ✓ | 12 | State, Appearance, State colors |
| Tank wagon | ✓ | ✓ | 8 | State, State colors |
| Hopper wagon | ✓ | ✓ | 8 | State, State colors |
| Container | ✓ | ✓ | 2 | State, Appearance |
| Pallet with cases | ✓ | ✓ | 3 | State, Appearance |
| Pallet | ✓ | ✓ | 1 | State |
| Carton | ✓ | ✓ | 2 | State, Appearance |
| Sack | ✓ | ✓ | 3 | State, Appearance |
| Big bag | ✓ | ✓ | 3 | State, Appearance |
| Plastic crate | ✓ | ✓ | 4 | State, Appearance |
| Wooden crate | ✓ | ✓ | 2 | State, Appearance |
| Drums on pallet | ✓ | ✓ | 3 | State, Appearance |
| IBC on pallet | ✓ | ✓ | 3 | State, Appearance |
| Loading dock door | ✓ | ✓ | 9 | State, Appearance, State colors |
| Weighbridge | ✓ | ✓ | 15 | State, Format, State colors, Font |
| Product cart | ✓ | ✓ | 12 | State, Appearance, Format, Font |
| Cart stock (grid) | ✓ | ✓ | 9 | State, Appearance, State colors |
| Truck (tractor + trailer) | ✓ | — | 6 | State, Appearance |
| Material feeding cart | ✓ | ✓ | 9 | State, Font |
| Truck and trailer (top view) | ✓ | — | 13 | State, Label, Appearance, Format, Font |
| Automated Warehouse (AS/RS) | ✓ | ✓ | 10 | State, Appearance, State colors |
| Warehouse Rack | ✓ | ✓ | 4 | Appearance, State |
| Locomotive | ✓ | ✓ | 8 | State, Appearance, State colors |
| Railway Track | ✓ | ✓ | 2 | Appearance, Scale |
| Ship-to-Shore Container Crane | ✓ | ✓ | 9 | State, Appearance, State colors |
| Cargo Ship | ✓ | ✓ | 2 | Scale, State |
Buildings and facilities
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Factory building | ✓ | ✓ | 8 | State, Appearance, State colors |
| Warehouse building | ✓ | ✓ | 13 | State, Appearance, State colors, Font |
| Office building | ✓ | ✓ | 7 | State, Appearance, State colors |
| Silo group | ✓ | ✓ | 12 | State, Appearance, State colors |
| Chimney | ✓ | ✓ | 8 | State, Appearance, State colors |
| Natural draft cooling tower | ✓ | ✓ | 7 | State, State colors |
| Tank farm | ✓ | ✓ | 10 | State, Appearance, State colors |
| Pipe bridge | ✓ | ✓ | 7 | State, State colors |
| Water tower | ✓ | ✓ | 8 | State, Appearance, State colors |
| Flare stack | ✓ | ✓ | 7 | State, State colors |
| Security booth | ✓ | ✓ | 8 | State, Appearance, State colors |
| Fence section | ✓ | ✓ | 2 | State, Appearance |
| Transformer yard | ✓ | ✓ | 6 | State, State colors |
| Cart washing cabin | ✓ | ✓ | 27 | State, Appearance, State colors, Font |
| Perimeter safety fence | ✓ | — | 2 | State |
| Emergency stop banner | ✓ | ✓ | 8 | State, Appearance, Font |
| Status chip | ✓ | ✓ | 7 | State, Font |
| Warning banner | ✓ | ✓ | 13 | State, Appearance, Font |
| Watertight Hatch Cover | ✓ | ✓ | 7 | State, State colors |
| Ground area | — | ✓ | 7 | Scale, Appearance |
| Wall | — | ✓ | 6 | Scale, Appearance |
| Glass partition | — | ✓ | 6 | Scale, Appearance |
| Column | — | ✓ | 7 | Appearance, Scale |
| Platform | — | ✓ | 7 | Scale, Appearance |
| Stairs | — | ✓ | 5 | Scale, Appearance |
| Railing | — | ✓ | 5 | Scale, Appearance |
| Sectional door | — | ✓ | 6 | State, Scale, Appearance |
| Building / Hall | — | ✓ | 7 | Scale, Appearance |
Electrical and power
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Oil-immersed power transformer | ✓ | ✓ | 7 | State, State colors |
| Dry-type transformer | ✓ | ✓ | 6 | State, State colors |
| Generator | ✓ | ✓ | 13 | State, State colors, Font |
| UPS (uninterruptible power supply) | ✓ | ✓ | 13 | State, State colors, Font |
| Battery bank | ✓ | ✓ | 16 | State, Scale, Appearance, State colors, Font |
| MCC panel | ✓ | ✓ | 15 | State, Appearance, State colors |
| Frequency inverter (VFD) | ✓ | ✓ | 15 | State, Scale, State colors, Font |
| Soft starter | ✓ | ✓ | 7 | State, State colors |
| Contactor | ✓ | ✓ | 6 | State, State colors |
| Molded case circuit breaker | ✓ | ✓ | 11 | State, State colors, Font |
| Load break switch | ✓ | ✓ | 11 | State, State colors, Font |
| Fuse holder | ✓ | ✓ | 6 | State, State colors |
| Busbar | ✓ | ✓ | 9 | State, Appearance, State colors |
| Energy analyzer | ✓ | ✓ | 15 | State, Scale, State colors, Font |
| Capacitor bank | ✓ | ✓ | 7 | State, State colors |
| Solar panel | ✓ | ✓ | 12 | State, State colors, Font |
| Wind turbine | ✓ | ✓ | 8 | State, State colors |
| High-voltage pylon | ✓ | ✓ | 6 | State, State colors |
| Junction box | ✓ | ✓ | 2 | State, Appearance |
| Cable tray | ✓ | ✓ | 4 | State, Appearance |
| Heating element | ✓ | ✓ | 12 | State, State colors, Font |
| Insulator | ✓ | ✓ | 9 | State, Appearance, Scale, State colors |
| Bushing Insulator | ✓ | ✓ | 8 | State, Appearance, State colors |
| Surge Arrester | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Auto-Reclosing Circuit Breaker (Recloser) | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| DC Power Supply | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Socket Outlet | ✓ | ✓ | 8 | State, Appearance, State colors |
| Nuclear Reactor Building | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Electrical panel | — | ✓ | 13 | State, Text, Appearance, Scale, State colors |
| Lighting Pole | — | ✓ | 11 | State, Scale, Appearance, State colors |
Buttons and indicators
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Illuminated push button | ✓ | ✓ | 10 | State, Appearance, Text, Font |
| Square push button | ✓ | ✓ | 10 | State, Appearance, Text, Font |
| Emergency stop button | ✓ | ✓ | 7 | State, Text, Font |
| Selector switch (2-position) | ✓ | ✓ | 8 | State, Appearance, Font |
| Selector switch (3-position) | ✓ | ✓ | 9 | State, Appearance, Font |
| Key switch | ✓ | ✓ | 8 | State, Appearance, Font |
| Pilot lamp (dome) | ✓ | ✓ | 3 | State, Appearance |
| Signal tower (2-tier) | ✓ | ✓ | 3 | State |
| Signal tower (4-tier, with buzzer) | ✓ | ✓ | 6 | State |
| Signal tower (5-tier, with buzzer) | ✓ | ✓ | 7 | State |
| Panel buzzer | ✓ | ✓ | 2 | State, Appearance |
| Toggle switch | ✓ | ✓ | 6 | State, Font |
| Rocker switch | ✓ | ✓ | 2 | State, Appearance |
| Potentiometer | ✓ | ✓ | 9 | State, Scale, Appearance, Font |
| Joystick | ✓ | ✓ | 3 | State, Appearance |
| Foot pedal | ✓ | ✓ | 2 | State, Appearance |
| Analog panel meter | ✓ | ✓ | 10 | State, Scale, Font |
| Digital panel meter | ✓ | ✓ | 11 | State, Scale, Appearance, Font |
| LED bar graph | ✓ | ✓ | 3 | State, Scale |
| Operator panel (HMI) | ✓ | ✓ | 11 | State, State colors, Font |
| Keypad | ✓ | ✓ | 8 | State, Font |
| Thumbwheel switch | ✓ | ✓ | 6 | State, Font |
| Hour meter | ✓ | ✓ | 7 | State, Font |
| Control desk | — | ✓ | 6 | State, Appearance |
Computers and network
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Desktop computer | ✓ | ✓ | 11 | State, State colors, Font |
| Laptop computer | ✓ | ✓ | 11 | State, State colors, Font |
| Rack server | ✓ | ✓ | 12 | State, State colors, Font |
| Server cabinet | ✓ | ✓ | 12 | State, State colors, Font |
| Industrial Ethernet switch | ✓ | ✓ | 8 | State, State colors |
| Router | ✓ | ✓ | 7 | State, State colors |
| Firewall | ✓ | ✓ | 12 | State, State colors, Font |
| Wireless access point | ✓ | ✓ | 6 | State, State colors |
| Modem | ✓ | ✓ | 7 | State, State colors |
| PLC | ✓ | ✓ | 12 | State, State colors, Font |
| Remote I/O station | ✓ | ✓ | 12 | State, State colors, Font |
| Industrial panel PC | ✓ | ✓ | 11 | State, State colors, Font |
| Printer | ✓ | ✓ | 7 | State, State colors |
| Barcode scanner | ✓ | ✓ | 7 | State, State colors |
| RFID reader | ✓ | ✓ | 7 | State, State colors |
| IP camera | ✓ | ✓ | 7 | State, State colors |
| Cloud | ✓ | ✓ | 8 | State, Appearance, State colors |
| Database | ✓ | ✓ | 7 | State, State colors |
| Network line | ✓ | ✓ | 6 | State, Appearance |
| Fiber line | ✓ | ✓ | 6 | State, Appearance |
| Satellite dish | ✓ | ✓ | 6 | State, State colors |
| Radio mast | ✓ | ✓ | 6 | State, State colors |
| Tablet | ✓ | ✓ | 11 | State, State colors, Font |
| Smartphone | ✓ | ✓ | 11 | State, State colors, Font |
Security
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Light curtain | ✓ | ✓ | 3 | State, Appearance |
| Door safety switch | ✓ | ✓ | 6 | State, State colors |
| Safety relay | ✓ | ✓ | 13 | State, State colors, Font |
| Fire alarm call point | ✓ | ✓ | 7 | State, Appearance, Font |
| Smoke detector | ✓ | ✓ | 2 | State |
| Sprinkler head | ✓ | ✓ | 2 | State |
| Fire extinguisher | ✓ | ✓ | 2 | State, Appearance |
| Eyewash station | ✓ | ✓ | 2 | State, Appearance |
| Gas detector | ✓ | ✓ | 12 | State, Scale, Appearance, Font |
| Dome camera | ✓ | ✓ | 8 | State, State colors |
| Rotating warning light (caged) | ✓ | ✓ | 3 | State, Appearance |
| Operator | — | ✓ | 7 | State, Appearance, Scale |
| Barrier | — | ✓ | 6 | Appearance, Scale |
Laboratory
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Beaker | ✓ | ✓ | 3 | State, Appearance |
| Erlenmeyer flask | ✓ | ✓ | 3 | State, Appearance |
| Test tube rack | ✓ | ✓ | 11 | State, Appearance |
| Microscope | ✓ | ✓ | 2 | State, Appearance |
| Precision balance | ✓ | ✓ | 9 | State, Scale, Font |
| Laboratory centrifuge | ✓ | ✓ | 13 | State, State colors, Font |
| Bunsen burner | ✓ | ✓ | 2 | State |
| Fume hood | ✓ | ✓ | 8 | State, State colors |
| Sample bottle | ✓ | ✓ | 3 | State, Appearance |
| Xenon Arc Test Chamber | ✓ | ✓ | 13 | State, State colors, Font |
| Laboratory Homogenizer | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
Weighing and dosing
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Screw dosing hopper | ✓ | ✓ | 8 | State, Appearance, State colors |
| Weigh hopper | ✓ | ✓ | 15 | State, Format, Appearance, State colors, Font |
| Weigh tank (liquid) | ✓ | ✓ | 12 | State, Format, Appearance, Font |
| Bag scale | ✓ | ✓ | 17 | State, Format, Appearance, State colors, Font |
| Belt scale (checkweigher) | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Platform scale (with containers) | ✓ | — | 4 | State |
| Digital weight indicator | ✓ | ✓ | 12 | State, Format, Appearance, Font |
| Weighing bin (with scale) | ✓ | ✓ | 14 | State, Format, Appearance, State colors, Font |
| Dosing weigh hopper (tilting) | ✓ | ✓ | 16 | State, Format, Appearance, State colors, Font |
| Rotary bucket table | ✓ | ✓ | 15 | State, Appearance, Font |
| Hopper line and dosing car | ✓ | ✓ | 17 | State, Appearance, Font |
| Deviation indicator (under – over) | ✓ | ✓ | 13 | State, Format, Appearance, Font |
Food and packaging
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Carton | ✓ | — | 1 | View |
| Big bag station | ✓ | ✓ | 10 | State, Appearance, Font |
| Sack tipping station (with sieve) | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Vertical filling machine | ✓ | ✓ | 7 | State, State colors |
| Horizontal pouch machine | ✓ | ✓ | 7 | State, State colors |
| Multi-lane sachet machine | ✓ | ✓ | 7 | State, State colors |
| Cube pressing and wrapping machine | ✓ | ✓ | 7 | State, State colors |
| Container filling line | ✓ | ✓ | 7 | State, State colors |
| Manual filling bench | ✓ | ✓ | 7 | State, State colors |
| Bottle unscrambler | ✓ | ✓ | 9 | State, Appearance, State colors |
| Rotary filling and capping | ✓ | ✓ | 9 | State, Appearance, State colors |
| Cap sorting drum | ✓ | ✓ | 9 | State, Appearance, State colors |
| Rotary labeling machine | ✓ | ✓ | 9 | State, Appearance, State colors |
| Case erecting, packing and sealing | ✓ | ✓ | 9 | State, Appearance, State colors |
| Vacuum Filler | ✓ | ✓ | 14 | State, State colors, Font |
| Tray Sealer | ✓ | ✓ | 8 | State, Appearance, State colors |
| Slicing Machine | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Packaging Container | ✓ | ✓ | 9 | Appearance, Scale, Font |
| CIP Unit | ✓ | ✓ | 18 | State, Appearance, State colors, Font |
| Pasteurization Unit (HTST) | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Industrial Homogenizer | ✓ | ✓ | 13 | State, State colors, Font |
| Continuous Ice Cream Freezer | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Chocolate Enrober | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Stick Ice Cream Moulding Line | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Spiral Freezer / Hardening Tunnel | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Chocolate Tempering Machine | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| UHT Unit | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Retort (Sterilization Autoclave) | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Bottle Washer | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Crate Washer | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Aseptic Filling Machine | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Inkjet / Laser Date Coder | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Shrink Tunnel | ✓ | ✓ | 13 | State, State colors, Font |
| X-ray Foreign Body Inspection System | ✓ | ✓ | 14 | State, State colors, Font |
| Machine Vision Camera | ✓ | ✓ | 8 | State, State colors |
| Cartoning Machine (Cartoner) | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Blister Machine | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Open-Mouth Bag Filling Machine | ✓ | ✓ | 14 | State, State colors, Font |
| Pallet Labeller | ✓ | ✓ | 13 | State, State colors, Font |
| Pallet Magazine (Stacker) | ✓ | ✓ | 13 | State, State colors, Font |
Ventilation (HVAC)
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Rectangular duct | ✓ | ✓ | 6 | State, Appearance |
| Short duct section | ✓ | ✓ | 6 | State, Appearance |
| Duct elbow | ✓ | ✓ | 7 | State, Appearance |
| Duct S-bend (offset) | ✓ | ✓ | 7 | State, Appearance |
| Duct tee | ✓ | ✓ | 7 | State, Appearance |
| Duct cross | ✓ | ✓ | 7 | State, Appearance |
| Duct wye | ✓ | ✓ | 7 | State, Appearance |
| Grille (rectangular) | ✓ | ✓ | 6 | State, Appearance |
| Round duct S-bend | ✓ | ✓ | 7 | State, Appearance |
| Round duct wye | ✓ | ✓ | 7 | State, Appearance |
| Round diffuser | ✓ | ✓ | 5 | State, Appearance |
| Duct transition (square → rectangular) | ✓ | ✓ | 7 | State, Appearance |
| Duct transition (square → round) | ✓ | ✓ | 7 | State, Appearance |
| Duct transition (round → rectangular) | ✓ | ✓ | 7 | State, Appearance |
| HVAC furnace (warm air cabinet) | ✓ | ✓ | 13 | State, State colors, Font |
| VAV Terminal Unit | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
Wire & Cable
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Cable Extruder | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Compact Extrusion Unit | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Extruder on Stand | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Satellite Extruder | ✓ | ✓ | 11 | State, Appearance, State colors |
| Extruder Screw (Cutaway) | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Twin-Feed Screw (Cutaway) | ✓ | ✓ | 10 | State, Appearance, State colors |
| Melt Gear Pump | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Granule Vacuum Loader | ✓ | ✓ | 9 | State, Appearance, State colors |
| Hopper Dryer | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Hydraulic Press | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Caterpillar Haul-off | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Crosshead (Wire Coating Head) | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Covered Cooling Trough | ✓ | ✓ | 11 | State, Appearance, State colors |
| Cooling Trough | ✓ | ✓ | 11 | State, Appearance, State colors |
| Cable Accumulator | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Take-up Winder | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Cable Bundle | ✓ | ✓ | 3 | View |
| Reel (Front View) | ✓ | ✓ | 10 | State, Appearance, State colors |
| Cable Drum | ✓ | ✓ | 11 | State, Appearance, State colors |
| Reel (Side View) | ✓ | ✓ | 10 | State, Appearance, State colors |
| Copper Wire Spool | ✓ | ✓ | 9 | State, Appearance, State colors |
Surface Treatment and Painting
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Plating Line | ✓ | ✓ | 16 | State, Appearance, Scale, State colors, Font |
| Phosphating Tunnel | ✓ | ✓ | 15 | State, Scale, Appearance, State colors, Font |
| Pneumatic Racking Machine | ✓ | ✓ | 7 | State, State colors |
| Plating Rack | ✓ | ✓ | 3 | Appearance, Scale, State |
| Anode | ✓ | ✓ | 7 | State, Appearance, State colors |
| Powder Coating Booth | ✓ | ✓ | 9 | State, Appearance, State colors |
| Paint Booth | ✓ | ✓ | 10 | State, Appearance, State colors |
| Powder Flow Meter | ✓ | ✓ | 12 | State, State colors, Font |
| Surface Preparation Station | ✓ | ✓ | 6 | State, State colors |
| Abrasive Blasting Machine | ✓ | ✓ | 7 | State, Appearance, State colors |
| Parts Washer | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Ultrasonic Cleaning Tank | ✓ | ✓ | 13 | State, State colors, Font |
| High-Pressure Water Jet Unit | ✓ | ✓ | 13 | State, State colors, Font |
| Decontamination Unit | ✓ | ✓ | 7 | State, State colors |
| Vibratory Finishing Bowl | ✓ | ✓ | 8 | State, State colors |
Metalworking
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Press Brake | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| CNC Turret Punch Press | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Guillotine Shear | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Ironworker (Punching and Shearing Machine) | ✓ | ✓ | 7 | State, State colors |
| Roller Leveling Machine | ✓ | ✓ | 7 | State, State colors |
| Laser Cutting Machine | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Mechanical Press | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Transfer Press | ✓ | ✓ | 15 | State, Scale, Appearance, State colors, Font |
| Seam Welding Machine | ✓ | ✓ | 7 | State, State colors |
| Pipe Threading Machine | ✓ | ✓ | 7 | State, State colors |
| Deburring Machine | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Surface Grinding Machine | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Cylindrical Grinding Machine | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Disc Grinding Machine | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Honing Machine | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Lapping and Polishing Machine | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Tool Grinding Machine | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Universal Lathe | ✓ | ✓ | 7 | State, State colors |
| CNC Turning Center | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Vertical Turning Lathe | ✓ | ✓ | 7 | State, State colors |
| Automatic Lathe | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Rotary Transfer Machine | ✓ | ✓ | 15 | State, Scale, Appearance, State colors, Font |
| CNC Machining Center | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Horizontal Milling Machine | ✓ | ✓ | 8 | State, Appearance, State colors |
| Radial Drill | ✓ | ✓ | 8 | State, State colors |
| Drill Press | ✓ | ✓ | 8 | State, Appearance, State colors |
| Wire EDM Machine | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Band Saw | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Coordinate Measuring Machine (CMM) | ✓ | ✓ | 9 | State, Appearance, State colors |
| Tool Presetter | ✓ | ✓ | 7 | State, State colors |
| Thread Inspection Device | ✓ | ✓ | 8 | State, State colors |
| Oil Mist Collector | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Industrial Vacuum Unit | ✓ | ✓ | 8 | State, State colors |
Panel Components
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Open Enclosure | ✓ | ✓ | 13 | Appearance, State, Text, Font |
| MCC Drawer Unit | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| Mounting Plate | ✓ | ✓ | 2 | View |
| DIN Rail | ✓ | ✓ | 2 | View |
| Cable Duct | ✓ | ✓ | 6 | View |
| Busbar System | ✓ | ✓ | 10 | State, Appearance, State colors |
| Cable Gland Plate | ✓ | ✓ | 4 | View |
| Compact PLC | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| Modular CPU (with Display) | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| Modular CPU | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Digital I/O Module | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| Analog I/O Module | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| Communication Module | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| Remote I/O station | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| PLC Power Module | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Ethernet Switch (DIN Rail) | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| Miniature Circuit Breaker | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Residual Current Device (RCD) | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Motor Protection Circuit Breaker | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| Molded Case Circuit Breaker (MCCB) | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| Air Circuit Breaker (ACB) | ✓ | ✓ | 16 | State, Text, Appearance, State colors, Font |
| Switch Disconnector (Main Switch) | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| NH Fuse Switch Disconnector | ✓ | ✓ | 13 | State, Text, Appearance, State colors, Font |
| Cylindrical Fuse Holder | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| Surge Protective Device | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| Phase Monitoring Relay | ✓ | ✓ | 13 | State, Text, Appearance, State colors, Font |
| Current Transformer | ✓ | ✓ | 7 | Appearance, Font |
| Energy analyzer | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| Contactor | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Thermal Overload Relay | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Plug-in Relay with Socket | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| Slim Interface Relay Block | ✓ | ✓ | 8 | Appearance, State, Text, Font |
| Timer Relay | ✓ | ✓ | 13 | State, Text, State colors, Font |
| Solid State Relay (SSR) | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| Safety relay | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| Signal Converter | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| Compact Frequency Inverter | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Modular Frequency Inverter | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Servo Drive | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Soft starter | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| Line Reactor | ✓ | ✓ | 6 | Appearance, Font |
| EMC Line Filter | ✓ | ✓ | 6 | Appearance, Font |
| Braking Resistor | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| DIN Rail Power Supply | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| DC UPS and Battery Module | ✓ | ✓ | 14 | State, Text, State colors, Font |
| Control Transformer | ✓ | ✓ | 6 | Appearance, Font |
| Terminal Block Group | ✓ | ✓ | 11 | Text, Appearance, Text |
| Earth / Neutral Bar | ✓ | ✓ | 2 | View |
| DIN Rail Service Socket | ✓ | ✓ | 12 | State, Text, State colors, Font |
| Enclosure Light | ✓ | ✓ | 13 | State, Text, Appearance, State colors, Font |
| Filter Fan | ✓ | ✓ | 14 | State, Text, Appearance, State colors, Font |
| Cabinet roof fan | ✓ | ✓ | 12 | State, Text, State colors, Font |
| Enclosure Cooling Unit (Side Mount) | ✓ | ✓ | 14 | State, Text, Appearance, State colors, Font |
| Enclosure Cooling Unit (Roof Mount) | ✓ | ✓ | 14 | State, Text, Appearance, State colors, Font |
| Enclosure Heater | ✓ | ✓ | 13 | State, Text, Appearance, State colors, Font |
| Enclosure Thermostat | ✓ | ✓ | 14 | State, Text, Appearance, State colors, Font |
| Multi-Section MCC Panel | ✓ | ✓ | 60 | Appearance, State, Text, Font |
| Multi-Section Enclosure (Bayed Suite) | ✓ | ✓ | 59 | Appearance, State, Text, Font |
| Wall-Mounted Enclosure | ✓ | ✓ | 7 | Appearance, State, Text |
| Control Desk | ✓ | ✓ | 13 | Appearance, State, Text, Font |
| Field Junction Box (Terminal Box) | ✓ | ✓ | 15 | Appearance, State, Text, Font |
| Push-Button Enclosure | ✓ | ✓ | 4 | View |
| Pushbutton (22 mm) | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| Illuminated Pushbutton (22 mm) | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| Double Pushbutton (22 mm) | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| Emergency Stop (40 mm mushroom) | ✓ | ✓ | 13 | State, Appearance, State colors, Font |
| Selector Switch (22 mm) | ✓ | ✓ | 11 | Appearance, State, Text, Font |
| Key Selector Switch (22 mm) | ✓ | ✓ | 11 | Appearance, State, Text, Font |
| Pilot Light (22 mm) | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| Potentiometer (22 mm) | ✓ | ✓ | 9 | State, Appearance, Text, Font |
| Buzzer (22 mm) | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| Door-Mounted Main Switch Handle | ✓ | ✓ | 13 | State, Appearance, State colors, Font |
| Panel-Mount Analog Meter | ✓ | ✓ | 10 | Appearance, Text, State, Font |
| Panel-Mount Digital Meter | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| Temperature Controller (PID) | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Digital Counter / Timer | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Door-Mount Operator Panel | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Door Service Interface | ✓ | ✓ | 2 | Appearance, State |
| Name / Warning Plate | ✓ | ✓ | 9 | Appearance, Text, Font |
| Automatic Transfer Switch (ATS) | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| Distribution Block | ✓ | ✓ | 8 | Appearance, Font |
| Comb Busbar | ✓ | ✓ | 7 | Appearance, Font |
| Electricity Meter | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| NH Fuse Base | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| Modular Contactor | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| Programmable Time Switch | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| Power Factor Correction Capacitor | ✓ | ✓ | 8 | Appearance, Text, Font |
| Power Factor Controller | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| Terminal End Stop | ✓ | ✓ | 1 | View |
| EMC Shield Busbar | ✓ | ✓ | 3 | View |
| C Profile / G Rail | ✓ | ✓ | 2 | View |
| Door Limit Switch | ✓ | ✓ | 12 | State, Text, State colors, Font |
| Drawing / Document Pocket | ✓ | ✓ | 2 | View |
| Ventilation Grille | ✓ | ✓ | 2 | View |
Siemens Panel Equipment
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| S7-1500 CPU | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| S7-1500 Signal Module | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| S7-1500 Power Module | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| S7-1500 Communication Module | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| S7-1500 Mounting Rail | ✓ | ✓ | 1 | View |
| S7-1200 CPU | ✓ | ✓ | 18 | State, Appearance, Text, State colors, Font |
| S7-1200 Signal Module | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| S7-1200 Communication Module | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| LOGO! Base Module | ✓ | ✓ | 18 | State, Appearance, Text, State colors, Font |
| LOGO! Expansion Module | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| ET 200SP Interface Module | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| ET 200SP I/O Module | ✓ | ✓ | 18 | State, Appearance, Text, State colors, Font |
| ET 200eco PN I/O Module | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| ET 200AL Module | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SCALANCE XB-000 Ethernet Switch | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SCALANCE XC-200 Managed Switch | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SINAMICS G120 (CU + PM240-2) | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SINAMICS G120C | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SINAMICS V20 | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SINAMICS S120 Booksize Module | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SINAMICS V90 Servo Drive | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SINAMICS S210 Servo Drive | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| SIRIUS 3RT2 Contactor | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SIRIUS 3RU2 Thermal Overload Relay | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SIRIUS 3RV2 Motor Starter Protector | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SIRIUS 3RA2 Load Feeder Combination | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SIRIUS 3RW Soft Starter | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SIRIUS 3RM1 Motor Starter | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SIRIUS 3UG Monitoring Relay | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SIRIUS 3SK Safety Relay | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SIRIUS 3RQ Interface Block | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| SIMOCODE pro Basic Unit | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SIMOCODE Current Measuring Module | ✓ | ✓ | 8 | Appearance, Text, Font |
| SIMOCODE Operator Panel | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SENTRON 5SL Miniature Circuit Breaker | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| SENTRON 5SV Residual Current Device | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| SENTRON 5SD7 Surge Protective Device | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SENTRON 3VA Molded Case Circuit Breaker | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| SENTRON 3KD Switch Disconnector | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SENTRON 3NP1 NH Fuse Switch Disconnector | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SENTRON 3WA Air Circuit Breaker | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| SENTRON PAC Power Monitoring Device | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| SITOP Power Supply | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SITOP UPS1600 DC UPS | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| SITOP UPS1100 Battery Module | ✓ | ✓ | 7 | Appearance, Text, Font |
| SIMATIC HMI Operator Panel | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| SIMATIC IPC Box PC | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| SIMATIC Panel PC | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| ALPHA Distribution Board | ✓ | ✓ | 4 | Appearance, State |
| SIVACON S8 Cubicle | ✓ | ✓ | 6 | Appearance, State |
| 8WH Terminal Block Group | ✓ | ✓ | 11 | Appearance, Text, Font |
ABB Panel Equipment
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| AC500 CPU | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| AC500-eco CPU | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| S500 I/O Module | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| AC500 Communication Module | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| S500 Remote I/O Interface | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| CP600 Operator Panel | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| ACS150 Frequency Converter | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| ACS355 Frequency Converter | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| ACS380 Frequency Converter | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| ACS480 Frequency Converter | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| ACS580 Frequency Converter | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| ACS880 Frequency Converter | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| MicroFlex e190 Servo Drive | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| AF Contactor | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| TF Thermal Overload Relay | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| MS132 / MS165 Manual Motor Starter | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| MS132 + AF Starter Combination | ✓ | ✓ | 13 | State, Text, State colors, Font |
| NF Contactor Relay | ✓ | ✓ | 13 | State, Appearance, Text, State colors, Font |
| OT Switch Disconnector | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Softstarter (PSR / PSE / PSTX) | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Compact 22 mm Pilot Device | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| S200 Miniature Circuit Breaker | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| DS201 RCBO | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| F200 Residual Current Device | ✓ | ✓ | 16 | State, Appearance, Text, State colors, Font |
| OVR Surge Protective Device | ✓ | ✓ | 15 | State, Appearance, Text, State colors, Font |
| CM Monitoring Relay | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| CT Timer Relay | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| Sentry Safety Relay | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| M4M Network Analyzer | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| Tmax XT Molded Case Circuit Breaker | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| Emax 2 Air Circuit Breaker | ✓ | ✓ | 17 | State, Appearance, Text, State colors, Font |
| CP-E Power Supply | ✓ | ✓ | 14 | State, Appearance, Text, State colors, Font |
| SNK Terminal Block Group | ✓ | ✓ | 11 | Appearance, Text, Font |
| Mistral65 Distribution Board | ✓ | ✓ | 5 | Appearance, State |
| System pro E Enclosure | ✓ | ✓ | 6 | Appearance, State |
Plastics and Rubber
| Object | 2D | 3D | Property | Property groups |
|---|---|---|---|---|
| Batch-off Cooling Line | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Plastic Injection Molding Machine | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Rubber Curing Press | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Calender | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Extrusion Blow Molding Machine | ✓ | ✓ | 17 | State, Appearance, State colors, Font |
| Thermoforming Machine | ✓ | ✓ | 16 | State, Appearance, State colors, Font |
| Rubber Bale Cutter | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Strainer Extruder | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
| Rotational Molding Machine | ✓ | ✓ | 14 | State, Appearance, State colors, Font |
| Vulcanizing Autoclave | ✓ | ✓ | 15 | State, Appearance, State colors, Font |
